Crow
Wireless
|
|
Product |
Rand
Retail.
Including
VAT.
Prices
may vary.
|
Information
|
Crow
VIB-2000 Shock Sensor
|
R402.50 |
Manual |
|
Wireless (W/L)
8
channel receiver
|
R2
242.50 |
|
Input
Voltage
|
10
to 15V DC
|
|
Frequency
|
868
MHz / 916 MHz
|
|
Current
Consumption
|
Max.
130mA
|
|
Outputs
|
Outputs
1 to 7 Solid State Relay OPTO MOSFET, Contact Resistance 17 ohm
Maximum Contacts Current - 100mA
|
Output
8 Relay, Contact Resistance- 0 ohm Maximum Contacts Current - 1A
|
Tamper
OPTO MOSFET, Contact Resistance 17 ohm Maximum Contacts Current -
100mA
|
|
STA
Input
|
Applied
low in the armed condition activates memory log.
|
|
Real
Time Clock
|
Real
time clock with backup battery lasting for 2000 hours or five years.
|
|
Wireless
Detectors
|
Up
to 32 detectors (8 per group)
|
|
Wireless
Keys
|
Up
to 8 remote keys can be connected
|
|
Log
Buffer (event)
|
64
records (FIFO)
|
|
Receiver
Sensitivity
|
Up
to 300 m in open areas
|
|
|

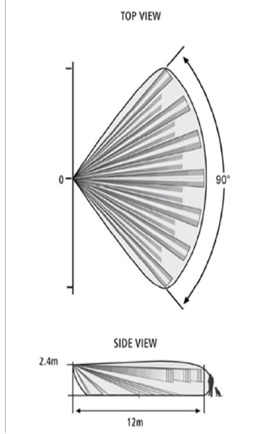

PIR
Indoor W/L
(Product
on picture left)
|
R1
035 |
|
Detection
Method
|
Internal
reed switch
or External magnet device
|
|
Data
Protocol
|
Freewave2™
Two Way Protocol
|
|
Modulation
Type
|
GFSK
|
|
Frequency
Band
|
868-869MHz
/ 916-917MHZ
|
|
Identification
|
Unique
ID serial number – 24 bit
|
|
Event
Transmission
|
Alarm,
Tamper, Supervision, Low Battery
|
|
External
Input
|
Up
to 15m with 8.2Kohm EOL resistor
|
|
LED
Indications
|
LED
confirm each transmission
|
|
Range
in open space
|
500
m
|
|
Tamper
Switch
|
Front
cover removal & Back tamper
|
|
Supervision
|
7
min by default (programmable between 1 to 30 min)
|
|
Current
Consumptions
|
Standby
~3 A
Receive
mode ~29 mA
Transmit
mode ~38 mA
|
|
Transmit
power
|
~10dBm
|
|
Power
Supply
|
1
x CR123 Battery
|
|
Battery
Life
|
Up
to 5 years
|
|
Operating
temperature
|
-10°C
to +55°C
|
|
Dimensions
|
97mm
x 22mm x 21mm
|
|
Weight
(inc. battery)
|
40
gr
|
|
|
Magnetic
door contact W/L
(Product
on picture right)
|
R862.50 |
|
Detection
Method
|
Quad
element PIR
|
|
Modulation
Type
|
GFSK
(1 Frequency)
|
|
Frequency
Band
|
868.35MHz
/ 916.5 MHz
|
|
Identification
|
Unique
ID serial number – 24 bit
|
|
Event
Transmission
|
Alarm,
Tamper, Supervision, Low Bat, Supervision Time 2 minutes (+random)
|
|
Range
(Open
Space)
|
500
meters
|
|
Battery
|
Lithium.
3V Type: CR123A
Size:
2/3AA
|
|
Battery
life expectancy
|
5
years on regular use
|
|
Current
Consumptions
|
Standby
~7 mA
Receive
mode ~29 mA
Transmit
mode ~38 mA
|
|
Transmit
power
|
~14dBm
|
|
Tamper
Switch
|
Front
Cover Removal &
Back
Tamper
|
|
LED
Indicators
|
Red
LED: ON during alarm
Green
LED: PIR CHANNEL
|
|
Operating
Temperature
|
-10ºC
~ +50 ºC (14 ºF~122 ºF)
|
|
Dimensions
|
123mm
x 62mm x 38mm
|
|
Weight
|
120gr
|
|
|

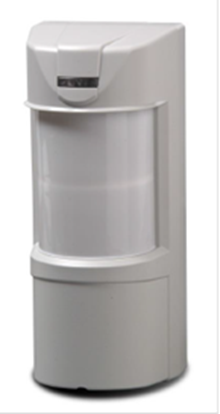

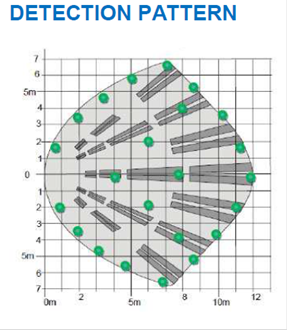

PIR
Outdoor W/L
 |
R2
760 |
|
Detection
Method
|
Double
PIR Elements with optional Antimasking feature
|
|
Data
Protocol
|
Freewave2
– Unique ID Serial Number (24 bits)
|
|
Frequency
|
868-869MHz
/ 916-917MHz
|
|
Events
Transmission
|
Alarm,
Anti-Mask, Tamper, Supervision, Low Bat
|
|
Supervision
Time
|
7
min by default (configurable between 1 to 30 minutes)
|
|
Range
in open space
|
500m
|
|
Battery
|
4
Batteries 1,5V Type AA LR06 ENERGIZER L91
|
|
Battery
life
|
Up
to 10 years
|
|
Current
Consumptions
|
Standby
~11 A
Receive
mode ~24 mA
Transmit
mode ~45 mA
|
|
Tamper
Switch
|
Front
Cover and Wall Removal
|
|
Transmit
Power
|
~
14dBm
|
|
Temp
Compensation
|
Yes,
Dual slop temperature compensation
|
|
Alarm
Period
|
2
sec (±0.5sec)
|
|
Warm
up Period
|
180
sec (± 5sec)
|
|
LED
Indicator
|
LED
is ON during ALARM and TROUBLE
|
|
Operation
Temp
|
-35ºC
~ +55ºC
|
|
Protection
Degree
|
IP
55
|
|
Dimensions
|
200mm
x 86mm x 80mm
|
|
Weight
|
500gr.
|
|
|
